Montagefüße zur Schraubmontage

Kontaktieren Sie uns für eine Produktanfrage

PRODUKTBESCHREIBUNG

Für die einfache Montage von Sammelschienen und Hutschienen stehen verschiedene Montagefüße zur Verfügung. Diese besitzen hierzu M6 Gewindebohrungen.

VORTEILE

  • Je nach Anwendung und Einbausituation stehen passende Montagefüße zur Verfügung.
  • Der Montagefuß MSD ermöglicht die Montage von zwei Schienen.

TECHNISCHE DATEN

  • Gewinde M6
  • Material: Stahl verzinkt

Produktvarianten & Größen

Montagefüße zur Schraubmontage

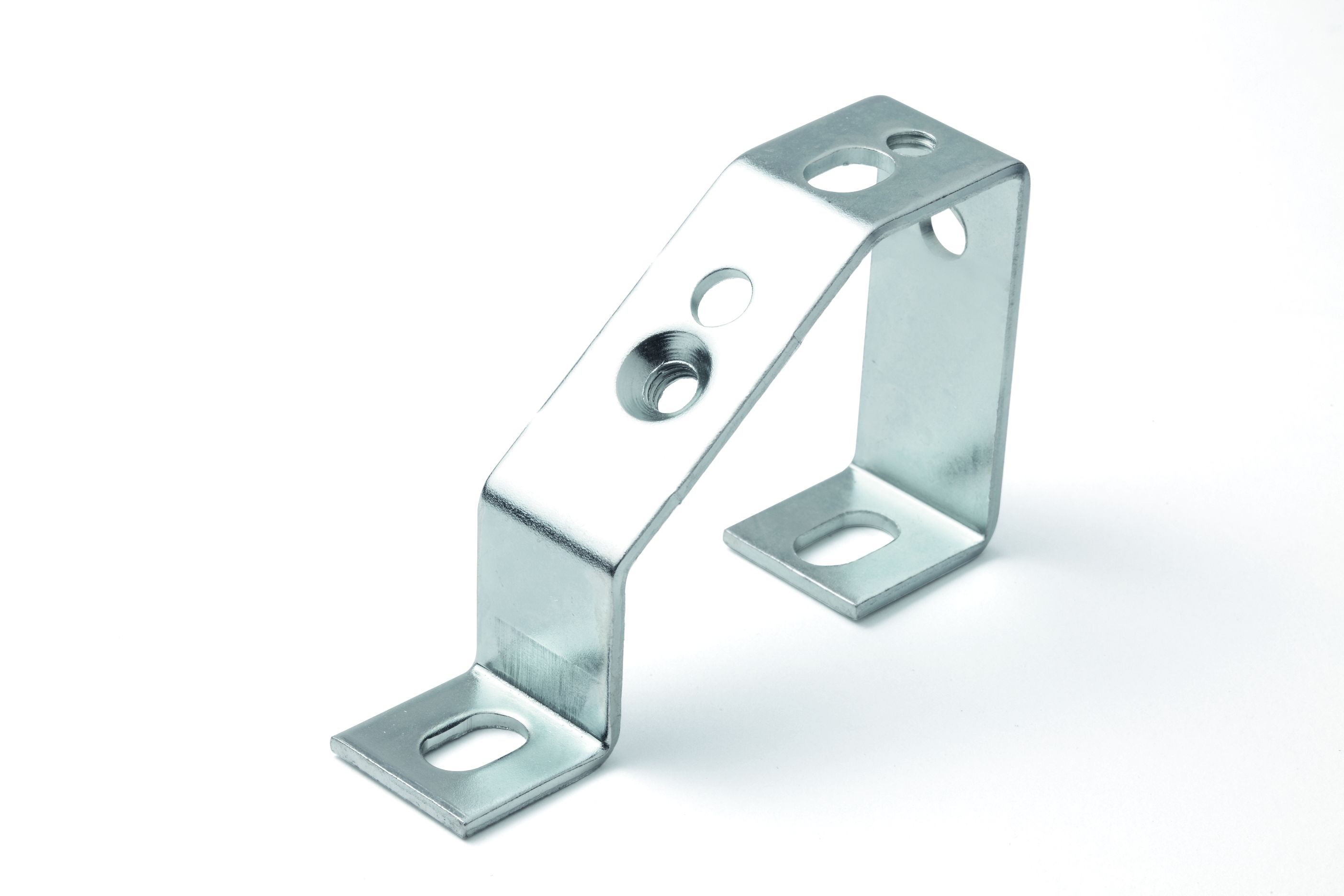

MSA-49

Downloads
Bestellnummer

1046-010C

L / B / H (mm)

80 / 20 / 49

VE

VE = 10 St.

MSA-68

Downloads
Bestellnummer

1046-011C

L / B / H (mm)

80 / 20 / 68

VE

VE = 10 St.

MSA-88

Downloads
Bestellnummer

1046-012C

L / B / H (mm)

80 / 20 / 88

VE

VE = 10 St.

MSB-20

Downloads
Bestellnummer

1046-020C

L / B / H (mm)

82 / 20 / 20

VE

VE = 10 St.

MSB-30

Downloads
Bestellnummer

1046-021C

L / B / H (mm)

82 / 20 / 30

VE

VE = 10 St.

MSB-50

Downloads
Bestellnummer

1046-022C

L / B / H (mm)

82 / 20 / 50

VE

VE = 10 St.

MSB-90

Downloads
Bestellnummer

1046-023C

L / B / H (mm)

82 / 20 / 90

VE

VE = 10 St.

MSC-40

Downloads
Bestellnummer

1046-030C

VE

VE = 10 St.

MSC-53

Downloads
Bestellnummer

1046-031C

VE

VE = 10 St.

MSD-49

Downloads
Bestellnummer

1046-040C

L / B / H (mm)

79 / 20 / 48.5

VE

VE = 10 St.
