HEBOPRESS cable lugs for the production of individual earthing braids

Contact us for a product enquiry

PRODUCT DESCRIPTION

HEBOPRESS Cable lugs for use with endless HEBOTEC earthing tape on reel provides a unique way to design the dimensions of earthing tapes individually.
With this technology, the optimal properties of flat conductor in terms of electromagnetic compatibility is maintained.

ADVANTAGES

very good derivation of high-frequency interference currents
small contact resistance
production according to your requirements

TECHNICAL DATA

Material: copper ETP tinned

Product variants & sizes

Press inserts cable lugs

KT 010-KL-22 Presseinsatz

Product enquiry

Order no.

2040-033A

Cross section

10mm²

Packaging unit

PU = 1 pc.

KT 016-KL-22 Presseinsatz

Product enquiry

Order no.

2040-032A

Cross section

16mm²

Packaging unit

PU = 1 pc.

KT 025-035-KL-22 Presseinsatz

Product enquiry

Order no.

2040-030A

Cross section

25.35mm²

Packaging unit

PU = 1 pc.

KT 050-070-KL-22 Presseinsatz

Product enquiry

Order no.

2040-034A

Cross section

50mm²

Packaging unit

PU = 1 pc.

Hebopress Cable lugs

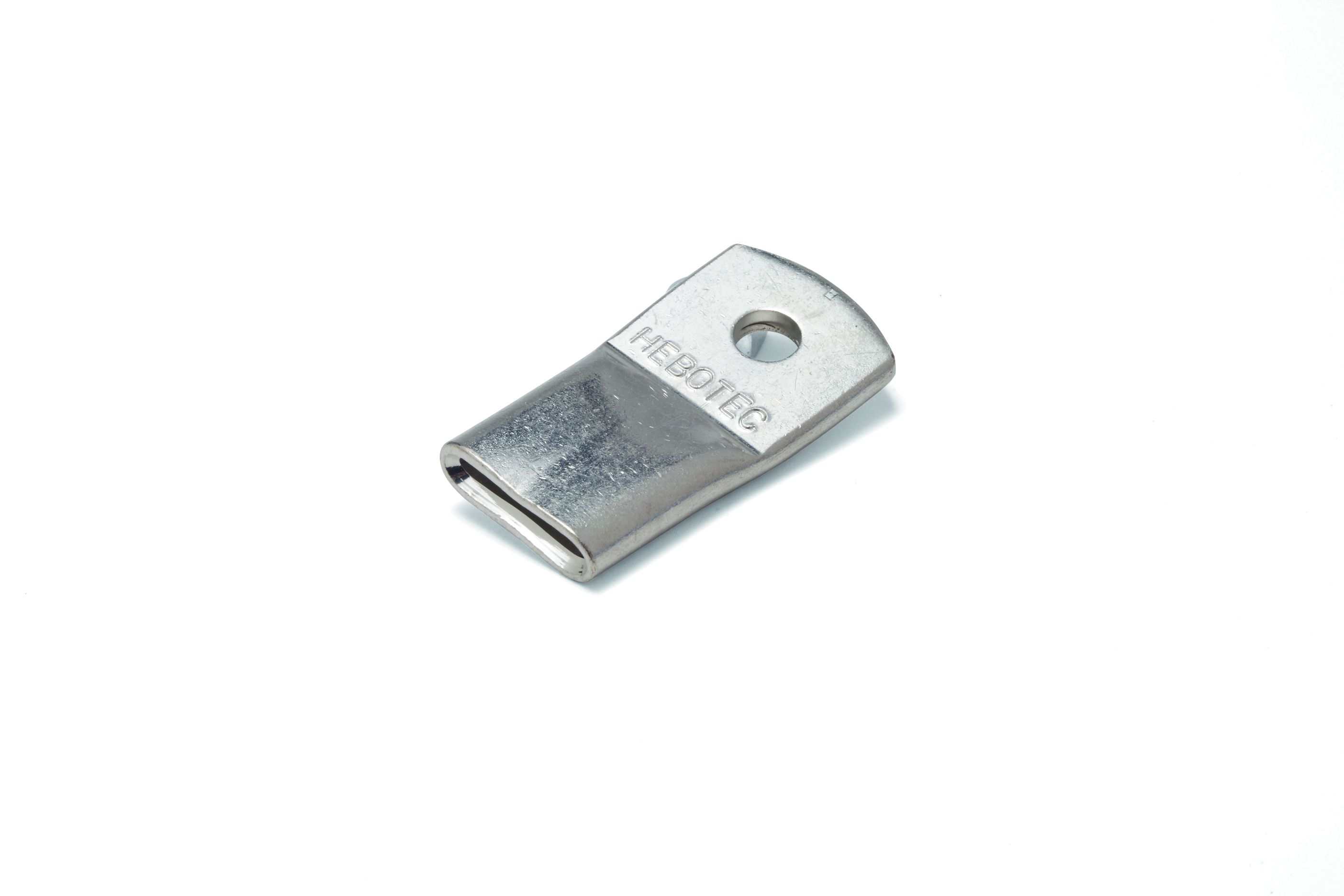

HPK 10 - 6

Product enquiry Downloads

Data sheet

Order no.

2040-011C

L / W / H (mm)

43.2 / 18.1 / 6.6

Cross section

10mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 10 - 8

Product enquiry Downloads

Data sheet

Order no.

2040-012C

L / W / H (mm)

43.2 / 18.1 / 6.6

Cross section

10mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 10 - 10

Product enquiry Downloads

Data sheet

Order no.

2040-013C

L / W / H (mm)

43.2 / 18 / 6.6

Cross section

10mm²

Mounting hole

M10

Packaging unit

PU = 10 pcs.

HPK 16 - 6

Product enquiry Downloads

Data sheet

Order no.

2040-001C

L / W / H (mm)

43.2 / 22.1 / 7.4

Cross section

16mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 16 - 8

Product enquiry Downloads

Data sheet

Order no.

2040-002C

L / W / H (mm)

43.2 / 22.1 / 7.7

Cross section

16mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 16 - 10

Product enquiry Downloads

Data sheet

Order no.

2040-003C

L / W / H (mm)

43.2 / 22.1 / 7.4

Cross section

16mm²

Mounting hole

M10

Packaging unit

PU = 10 pcs.

HPK 25/35 - 8

Product enquiry Downloads

Data sheet

Order no.

2040-062C

L / W / H (mm)

54.3 / 31.7 / 11.1

Cross section

25.35mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 25/35 - 10

Product enquiry Downloads

Data sheet

Order no.

2040-063C

L / W / H (mm)

54.3 / 31.7 / 11.1

Cross section

25.35mm²

Mounting hole

M10

Packaging unit

PU = 10 pcs.

HPK 25/35 - 12

Product enquiry Downloads

Data sheet

Order no.

2040-064C

L / W / H (mm)

54.2 / 31.7 / 11.1

Cross section

25.35mm²

Mounting hole

M12

Packaging unit

PU = 10 pcs.

HPK 50/70 - 8

Product enquiry Downloads

Data sheet

Order no.

2040-071C

L / W / H (mm)

58.2 / 42.5 / 13.6

Cross section

50mm²

Mounting hole

Packaging unit

PU = 10 pcs.

HPK 50/70 - 10

Product enquiry Downloads

Data sheet

Order no.

2040-072C

L / W / H (mm)

58.2 / 42.5 / 13.6

Cross section

50mm²

Mounting hole

M10

Packaging unit

PU = 10 pcs.

Tools

Flachbandschere

Product enquiry

Order no.

2040-041A

Packaging unit

PU = 1 pc.

Handpresse

Product enquiry

Order no.

2040-042A

Packaging unit

PU = 1 pc.

EK6022CFB

Product enquiry

Order no.

2040-043A

Packaging unit

PU = 1 pc.

EK60UNVCFB

Product enquiry

Order no.

2040-045A

Packaging unit

PU = 1 pc.

EK6022CFM

Product enquiry

Order no.

2040-046A

Packaging unit

PU = 1 pc.

EK60UNVCFM

Product enquiry

Order no.

2040-047A

Packaging unit

PU = 1 pc.

UA22 Adapter für Presseinsätze

Product enquiry

Order no.

2040-044A

Packaging unit

Earthing tape on reel

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0040-10-50m

L (mm)

50000

Cross section

4mm²

Packaging unit

PU = reel 50m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0060-10-50m

L / W / H (mm)

50000 / 9.5 / 1

Cross section

6mm²

Packaging unit

PU = reel 50m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0100-20

L / W / H (mm)

25000 / 12.2 / 2.2

Cross section

10mm²

Packaging unit

PU = reel 25m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0160-20

L / W / H (mm)

25000 / 1.74 / 1.7

Cross section

16mm²

Packaging unit

PU = reel 25m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0250-20

L / W / H (mm)

25000 / 19.5 / 2

Cross section

25mm²

Packaging unit

PU = reel 25m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0350-20

L / W / H (mm)

25000 / 22.2 / 2.8

Cross section

35mm²

Packaging unit

PU = reel 25m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0500-20

L / W / H (mm)

25000 / 30.7 / 3.1

Cross section

50mm²

Packaging unit

PU = reel 25m

Flachband auf Rolle

Product enquiry Downloads

Data sheet

Order no.

5-KO-0700-20

L / W / H (mm)

25000 / 26.1 / 5

Cross section

70mm²

Packaging unit

PU = reel 25m

Press inserts pin terminals

SK 010-KL-22 Presseinsatz

Product enquiry

Order no.

2040-035A

Packaging unit

PU = 1 pc.

SK 016-KL-22 Presseinsatz

Product enquiry

Order no.

2040-036A

Packaging unit

PU = 1 pc.

SK 025-KL-22 Presseinsatz

Product enquiry

Order no.

2040-037A

Packaging unit

PU = 1 pc.

Hebopress pin terminals

HPSK 10

Product enquiry

Order no.

2040-081E

Cross section

50mm²

Mounting hole

Packaging unit

PU = 50 pcs.

HPSK 16

Product enquiry

Order no.

2040-082E

Cross section

50mm²

Mounting hole

Packaging unit

PU = 50 pcs.

HPSK 25

Product enquiry

Order no.

2040-083E

Cross section

50mm²

Mounting hole

Packaging unit

PU = 50 pcs.
