Equipotential bonding clamp
Equipotential bonding solutions
Contacting solutions for potential equalisation
Equipotential bonding clamps and conductor cables
Select the clamp according to the conductor cable and connecting lead cross-sections. Variant 1048-101C is screw-mounted. Use the product data and assembly instructions to select the appropriate components.
Made in Germany.
Do you have any questions?
Please contact us:
Equipotential bonding terminals
With outstanding contact surface
In modern electrical engineering, effective grounding and equipotential bonding systems are crucial for the safety and functionality of systems. With its high-quality equipotential bonding terminals, HEBOTEC offers tailor-made solutions for various applications.
- Equipotential bonding contact
- Equipotential bonding terminals
- Discharge solutions for equipotential bonding
Selecting an equipotential bonding clamp
Check conductor cross-sections and connections
Select the clamp according to the conductor cable, connecting lead and mounting conditions. The relevant product data sheet specifies the connection ranges and included mounting hardware. This helps you match the clamp, conductors and accessories before ordering.
HEBOTEC equipotential bonding clamps: selection criteria
- Material: Variant 1048-101C is made of zinc-plated spring steel.
- Mounting: 1048-101C is screw-mounted; the mounting screw is included.
- Conductor cable: 1048-101C is specified for cross-sections from 10 to 16 mm².
- Connecting lead: 1048-101C accepts 6 to 25 mm² with a wire end ferrule.
Check the relevant product data for other variants. Tell HEBOTEC the required conductor cross-sections and mounting conditions to help select a suitable version.
Grounding and equipotential bonding
Clamp material and mounting

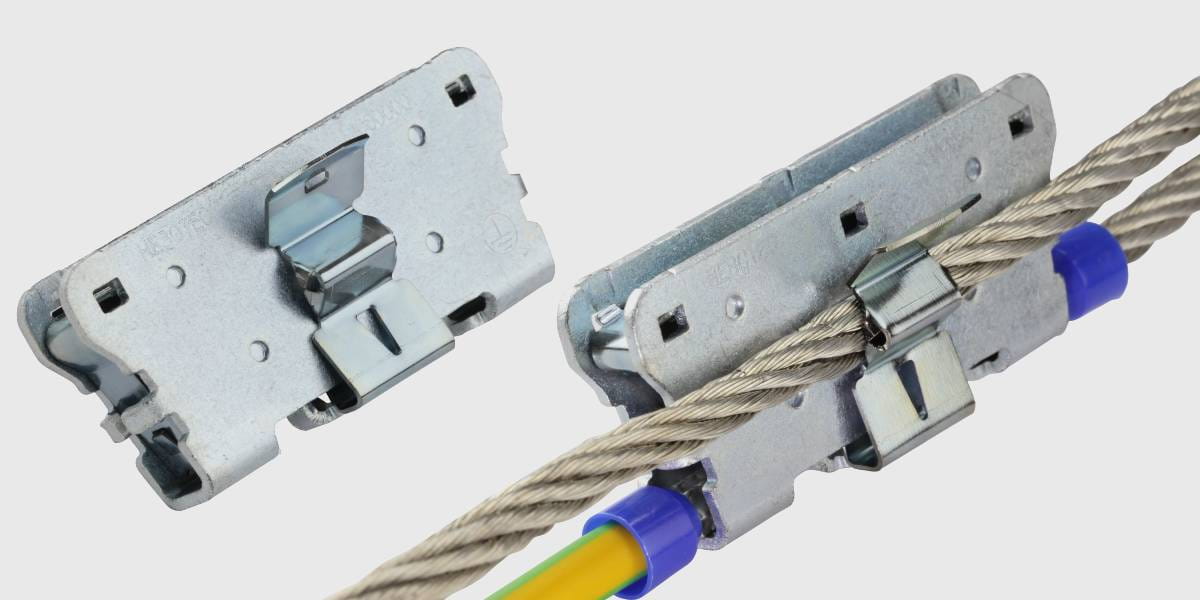

The PAK 25 - 16 equipotential bonding clamp (1048-101C) is made of zinc-plated spring steel. Its data sheet specifies conductor cables from 10 to 16 mm² and connecting leads from 6 to 25 mm² with a wire end ferrule.
The clamp is screw-mounted. The data sheet specifies an M6 fixing and an included mounting screw. Check the mounting conditions and suitability for the intended installation when selecting the product.
Equipotential bonding clamps and accessories
Select the components for the connection

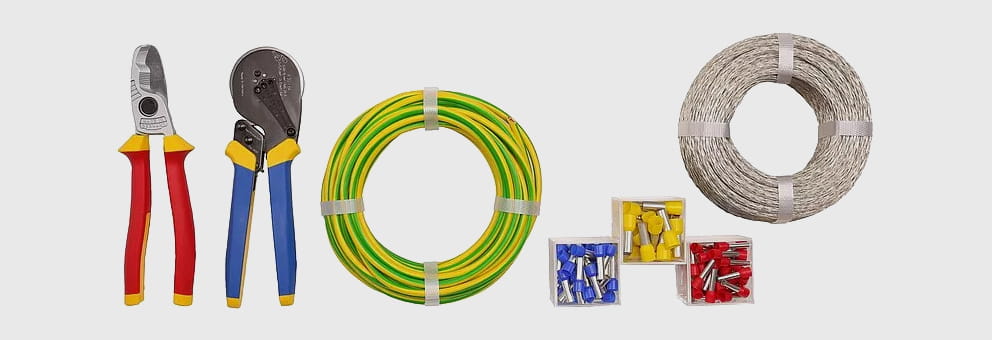

The product range includes equipotential bonding clamps, a press tool, tinned copper conductor cables, wire end ferrules and PVC connecting leads. Match the components to the connection ranges of the selected clamp. Use the product data and assembly instructions when specifying the components and assess suitability for the complete application.
Equipotential bonding clamps from HEBOTEC
Match the connection to the application
The equipotential bonding clamps connect conductor cables and connecting leads within the specified connection ranges. Match the clamp variant, conductor cross-sections and mounting method.
The product name alone does not establish suitability for every protective or earthing function. Selection must be based on the product data and the requirements of the installation. HEBOTEC can help you select the appropriate components.

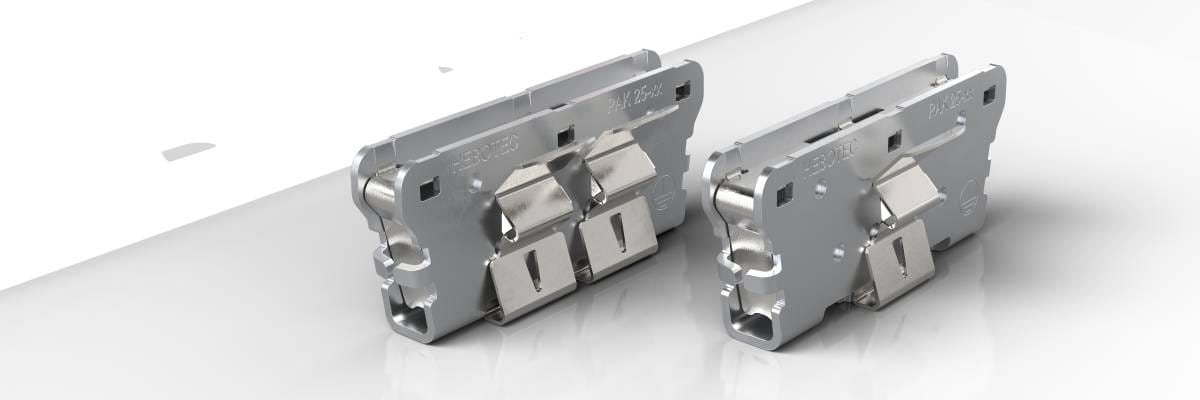

Equipotential bonding clamps - premium quality Made in Germany
HEBOTEC stands for the highest quality and reliability. Our equipotential bonding clamps are manufactured in Germany using state-of-the-art technology and in accordance with strict quality standards. We only use carefully selected materials to ensure a long service life and first-class performance of our products. Rely on HEBOTEC to overcome your EMC challenges professionally and efficiently.
