Shield clamps Big for screw mounting

PRODUCT DESCRIPTION

The shield clamp Big for large diameters features a wide clamping range, thus allows an excellent contact of cable shields with large diameters.

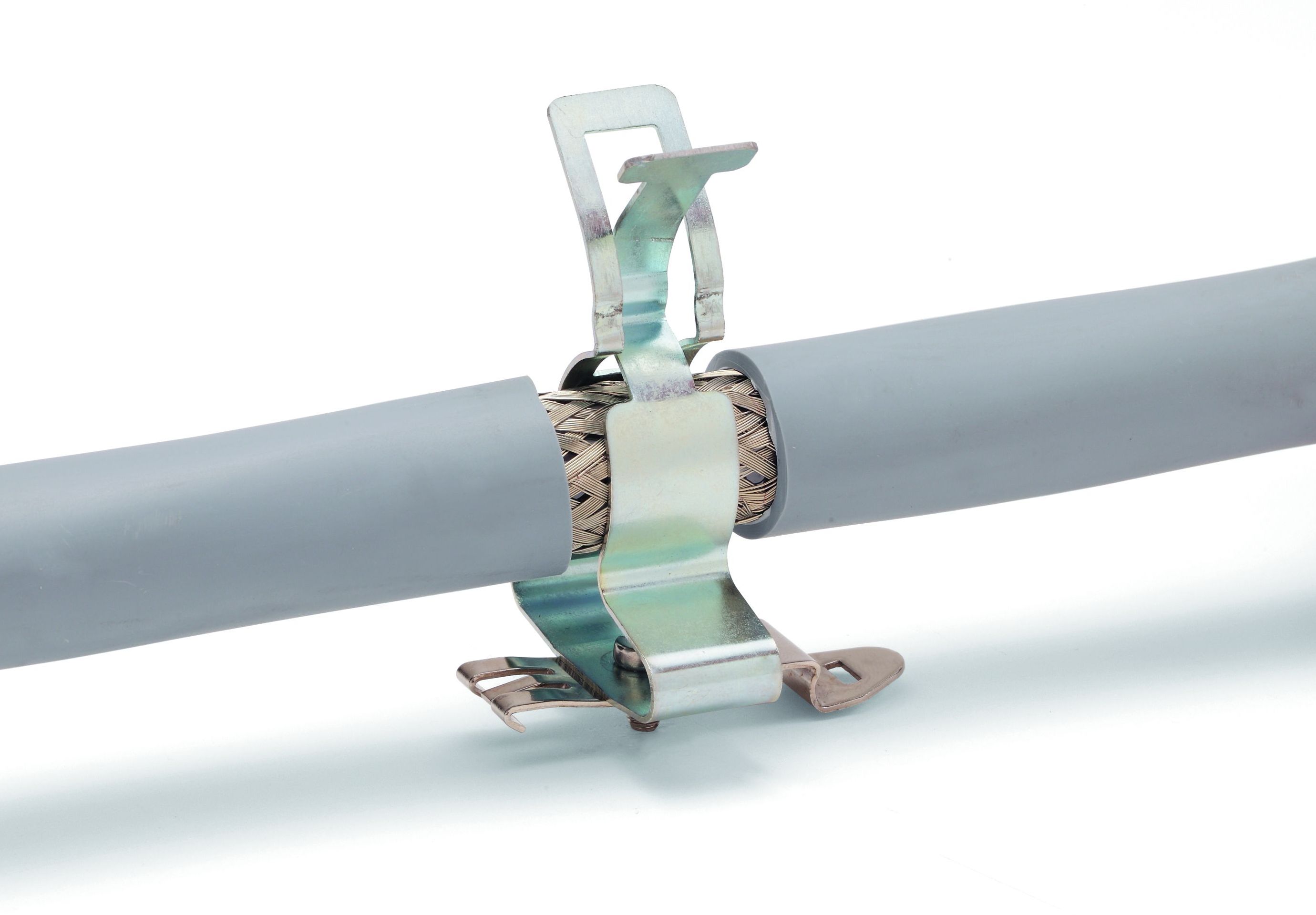

The stripped cable has to be pressed into the shield clamp. The spring pressure of the clamp offers constant contact with the cable shield.

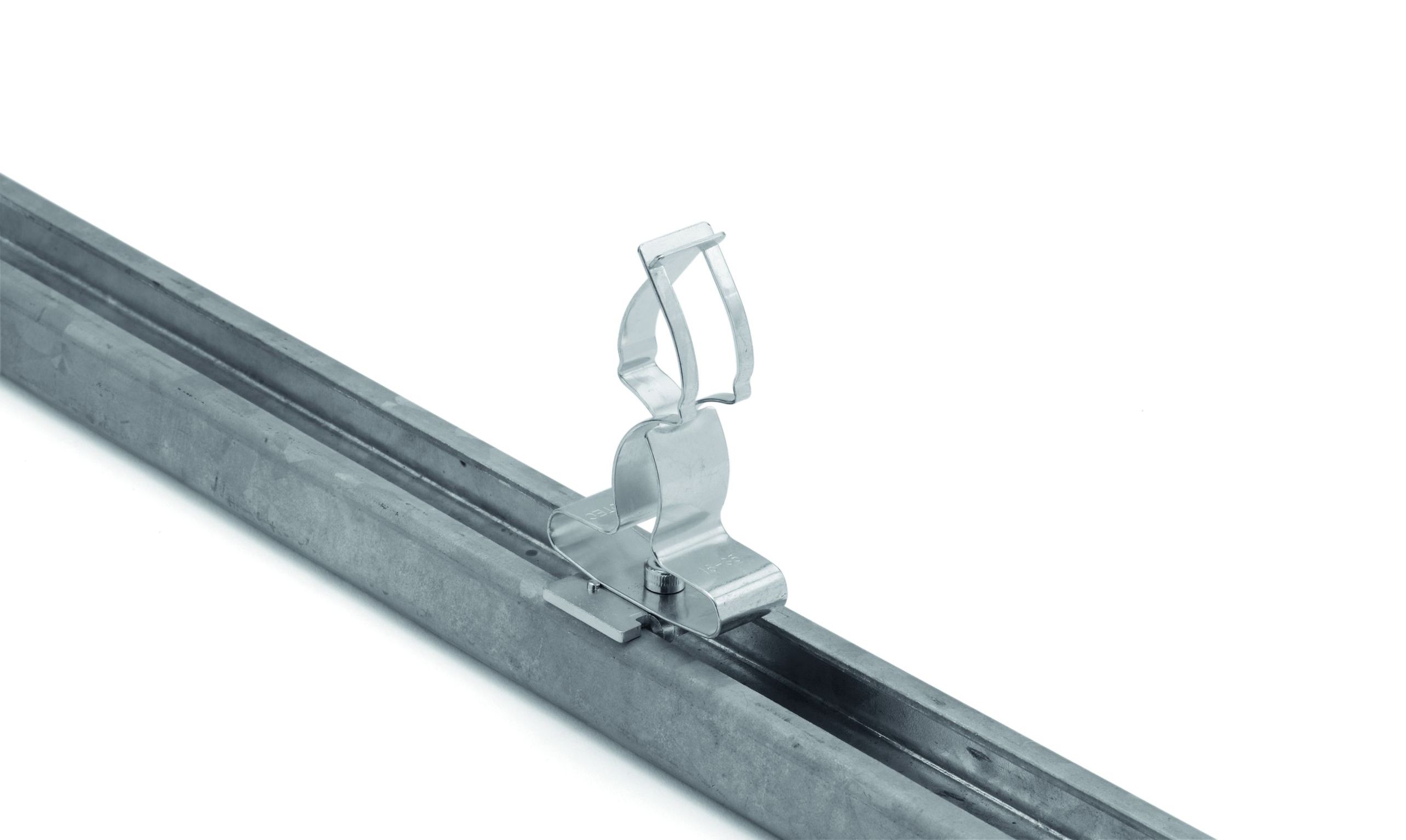

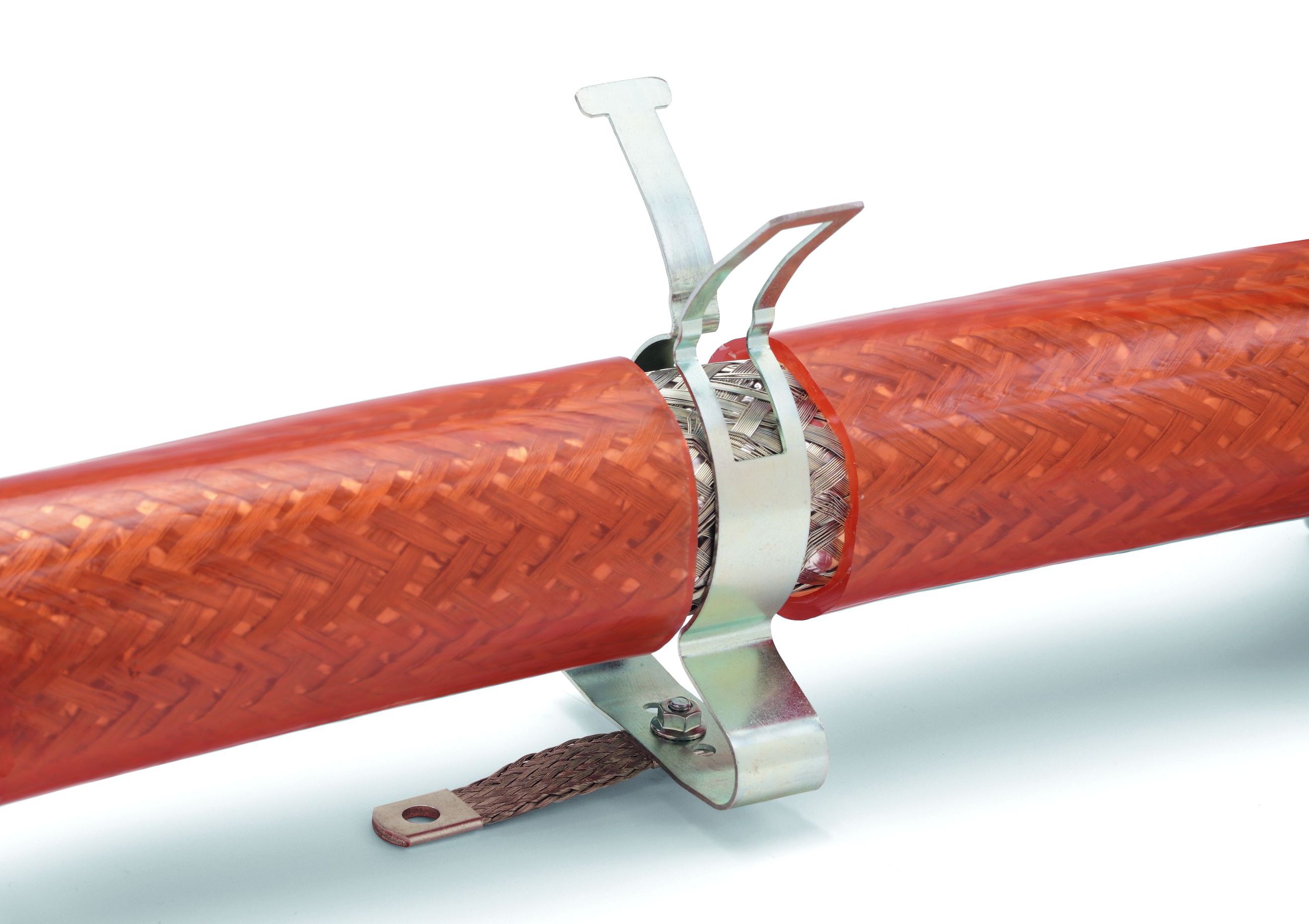

The shield clamp is available for direct assembly with an M4 screw, with clip foot for assembly onto a 35 mm DIN rail and with a flexible flat tape connector with a length of 50 mm. The accessory comonent mounting adapter allows the assembly onto C-rails.

ADVANTAGES

• wide clamping range
• constant contact with cable shield due to spring pressure
• high conductance
• flexible earth connection

TECHNICAL DATA

• Material: galvanised spring steel, nickle-plated spring steel, tin-plated copper

Shield clamps Big for screw mounting

Earthing clamps are an essential component in many electrical installations to ensure safety and performance. Our shield clamps for screw mounting, especially the "shield clamp big" for large diameters, offer the perfect solution for securely fastening cable shields and optimising conductivity. Find out more about these innovative clamps and their many possible applications.

Earthing clamps for direct mounting

Our "Shield clamp Big" for large cables is a very good solution for securely fastening large-diameter cable shields. With a large clamping area, it offers the possibility of reliably contacting cable shields, withstanding weight and tension and minimising electromagnetic interference.
This earthing clamp is extremely versatile and available in different versions:

• Direct mounting with M4 screw
• Mounting on 35 mm top-hat rail with a snap-on foot
• Flexible ribbon connection with a length of 50 mm
• The mounting adapter accessory enables mounting on C-rails for even more flexibility

How do earthing clamps work?

Earthing clamps are essential components in the electrical infrastructure that serve to effectively minimise electromagnetic interference and improve the safety and performance of electrical systems. By creating a stable, low-impedance connection between the cable shield and the earth, these clamps prevent unwanted electromagnetic interference that can affect the functionality and integrity of electronic equipment. Their design allows for even pressure distribution on the cable shield, ensuring a durable and reliable connection. Earthing clamps are critical to establishing a secure electrical connection and minimising unwanted interference. They work by contacting the cable shield securely and evenly via the spring force of the clamp. This ensures effective dissipation of interference currents and minimises electromagnetic interference, which is particularly important in sensitive environments.

Areas of application for earthing clamps

Earthing terminals for EMC shielding are used in a wide range of applications where it is important to reduce electromagnetic interference and ensure electromagnetic compatibility. From electrical control cabinets and industrial production systems to telecommunications infrastructures and medical equipment - wherever electrical and electronic systems need to be protected from electromagnetic interference, earthing terminals make a significant contribution to EMC shielding.

Earthing terminals are used in various areas of application:

• Electrical switch cabinets: For shielding and earthing electrical components in switch cabinets.
• Industrial systems: In industrial environments to minimise electrical interference and ensure smooth operation.
• Telecommunications: In telecommunications systems to prevent electromagnetic interference and improve signal quality.
• Medical technology: In medical devices and facilities to minimise interference and ensure patient safety.
• Electromobility: In charging stations and electric vehicles to ensure reliable earthing and shielding.

Compatibility

A key feature of the earthing clamps manufactured by Hebotec, including the "shield clamp big", is their excellent compatibility with all common mounting systems such as top-hat rails and C-rails. This universal compatibility ensures that our customers have the flexibility to use our earthing clamps in a wide range of applications without having to worry about mounting problems. The "Shield Clamp Big" is specially designed to allow easy and quick installation, making it a favourite choice for professionals.

Variants and accessories

Hebotec offers a wide range of variants of the "Shield Clamp Big" for EMC shielding to fulfil different customer requirements. From models specifically designed for DIN rail mounting to variants for direct mounting - we have a solution for every application. In addition, we offer an extensive range of accessories, including mounting adapters and special earthing cables, to ensure even greater adaptability and efficiency of our products.
