Schirmklammern für Hutschiene
PRODUKTBESCHREIBUNG

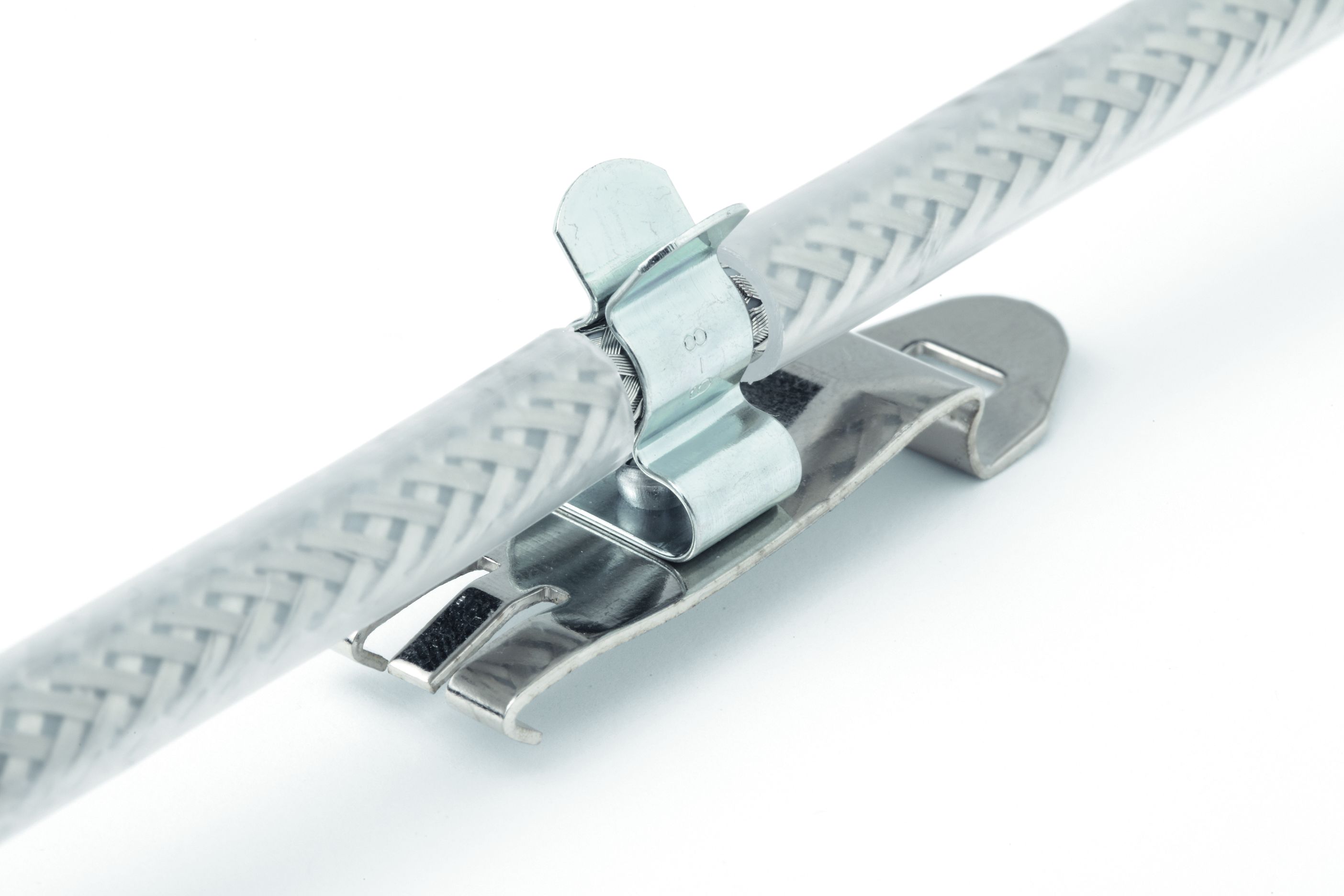

Die Schirmklammer mit Hutschienenadapter kann werkzeugfrei auf eine 35-mm-Hutschiene aufgeschnappt werden. Zur sicheren Kontaktierung muss der Kabelschirm nur noch in die Schirmklammer eingedrückt werden.
VORTEILE
- einfache werkzeugfreie Montage
- durch Federwirkung gleichbleibend gute Kontaktgabe zum Kabelschirm
- sehr gute Ableitung hochfrequenter Störströme
TECHNISCHE DATEN
- Material: Federstahl verzinkt, Federstahl vernickelt
Produktvarianten & Größen
SKH 1,5 - 3
1030-001C
50.9 / 14.1 / 18.7
1.5 / 3
VE = 10 St.
SKH 3 - 6
1030-002C
50.9 / 14.1 / 21.1
3 / 6
VE = 10 St.
SKH 6 - 8
1030-003C
50.9 / 14.1 / 22.8
6 / 8
VE = 10 St.
SKH 8 - 11
1030-004C
50.9 / 14.1 / 25.4
8 / 11
VE = 10 St.
SKH 11 - 16
1030-005C
50.9 / 14.1 / 29.5
11 / 16
VE = 10 St.
SKH 17 - 30
1030-006C
50.9 / 26.1 / 39.2
17 / 30
VE = 10 St.
SKH 3 - 12
1030-011C
50.9 / 14.1 / 28.9
3 / 12
VE = 10 St.
SKH 7 - 18
1030-012C
50.9 / 15.1 / 37.2
7 / 18
VE = 10 St.
HSKB-S 16 - 35
1012-011B
50.6 / 40.1 / 69.1
16 / 35
VE = 5 St.
HSKB-S 35 - 65
1012-012B
50.9 / 60.1 / 115.5
35 / 65
VE = 5 St.
SKHZ 1,5 - 3
1031-001C
51.4 / 14.1 / 19.4
1.5 / 3
VE = 10 St.
SKHZ 3 - 6
1031-002C
51.4 / 14.1 / 21.6
3 / 6
VE = 10 St.
SKHZ 6 - 8
1031-003C
51.5 / 14 / 25.8
6 / 8
VE = 10 St.
SKHZ 8 - 11
1031-004C
51.5 / 14.1 / 27.8
8 / 11
VE = 10 St.
SKHZ 11 - 16
1031-005C
51.5 / 14.1 / 32.4
11 / 16
VE = 10 St.
SKHZ 17 - 30
1031-006C
51.4 / 26.1 / 39.8
17 / 30
VE = 10 St.
SKHZ 3 - 12
1031-011C
51.5 / 14.1 / 30.2
3 / 12
VE = 10 St.
SKHZ 7 - 18
1031-012C
51.5 / 15.1 / 37.9
7 / 18
VE = 10 St.
SKZH 11 - 18
1031-025C
42.7 / 19.1 / 30.3
11 / 18
VE = 10 St.
SKHZZ 1,5 - 3
1032-001C
45.5 / 13.1 / 23.6
1.5 / 3
VE = 10 St.
SKHZZ 3 - 6
1032-002C
44.5 / 13.1 / 25.8
3 / 6
VE = 10 St.
SKHZZ 6 - 8
1032-003C
44.5 / 13.1 / 28.4
6 / 8
VE = 10 St.
SKHZZ 8 - 11
1032-004C
44.5 / 13.1 / 30.2
8 / 11
VE = 10 St.
SKHZZ 11 - 16
1032-005C
44.5 / 13.1 / 34.3
11 / 16
VE = 10 St.
SKHZZ 17 - 30
1032-006C
44.5 / 26.1 / 44.2
17 / 30
VE = 10 St.
SKHZZ 3 - 12
1032-011C
45.4 / 13.1 / 31.6
3 / 12
VE = 10 St.
SKHZZ 7 - 18
1032-012C
45.4 / 15.1 / 40.5
7 / 18
VE = 10 St.
SKHH 1,5 - 3
1030-201C
42.7 / 13.1 / 21.4
1.5 / 3
VE = 10 St.
SKHH 3 - 6
1030-202C
42.7 / 13.1 / 23.5
3 / 6
VE = 10 St.
SKHH 6 - 8
1030-203C
41.1 / 13.1 / 27.2
6 / 8
VE = 10 St.
SKHH 8 - 11
1030-204C
42.6 / 13.1 / 27.8
8 / 11
VE = 10 St.
SKHH 11 - 16
1030-205C
42.7 / 13.1 / 31.9
11 / 16
VE = 10 St.
SKHH 17 - 30
1030-206C
42.7 / 26.1 / 42.1
17 / 30
VE = 10 St.
SKHH 3 - 12
1030-211C
42.1 / 13.1 / 31.1
3 / 12
VE = 10 St.
SKHH 7 - 18
1030-212C
7 / 18
VE = 10 St.
SKHHZ 1,5 - 3
1030-301C
41.1 / 12.9 / 23.5
1.5 / 3
VE = 10 St.
SKHHZ 3 - 6
1030-302C
41.1 / 13.1 / 25.8
3 / 6
VE = 10 St.
SKHHZ 6 - 8
1030-303C
41.1 / 12.9 / 27.8
6 / 8
VE = 10 St.
SKHHZ 8 - 11
1030-304C
41.1 / 12.9 / 30.1
8 / 11
VE = 10 St.
SKHHZ 11 - 16
1030-305C
41.1 / 12.9 / 34.3
11 / 16
VE = 10 St.
SKHHZ 17 - 30
1030-306C
41.1 / 26.1 / 44.1
17 / 30
VE = 10 St.
SKHHZ 3 - 12
1030-311C
41.1 / 12.9 / 33.3
3 / 12
VE = 10 St.
SKHHZ 7 - 18
1030-312C
41.1 / 15.1 / 42.2
7 / 18
VE = 10 St.
SF-SK 3-8
1042-001C
50.6 / 14.1 / 31.6
3 / 8
VE = 10 St.
SF-SK 4-13,5
1042-002C
50.6 / 19.1 / 37.4
4 / 13.5
VE = 10 St.
SF-SK 10-20
1042-003C
50.5 / 36.6 / 72.5
10 / 20
VE = 10 St.
SF-SK 15-32
1042-004C
50.5 / 36.6 / 72.5
15 / 32
VE = 10 St.
